Dual technology tags: one housing, two radios.
A conventional security tag answers one reader at the door. A dual technology tag carries a second, separate radio that answers a different reader entirely, so the same tag that guards the exit also feeds the inventory count. For stores running both EAS and RFID, that collapses two tagging programs into one.
What a Dual Technology Tag Is
A dual technology tag packages two independent components in one housing. The first is a standard EAS element, either an acousto magnetic (AM) element that answers pedestals at 58 kHz or a radio frequency (RF) circuit that answers at 8.2 MHz. The second is a passive UHF RFID inlay operating in the 900 MHz range under the EPC Gen 2 standard, the technology the industry brands as RAIN RFID.
Each component does exactly what it does in a single purpose tag. The EAS element makes the exit pedestals alarm if the tag crosses the door live. The RFID inlay reports the tag's unique serial number whenever an RFID reader sweeps the floor or the stockroom. Neither part knows the other exists. The pairing exists in the plastic, not in the electronics.
Both of the dominant tag ecosystems offer the combination, in AM flavors on the Sensormatic side and RF flavors on the Checkpoint side, and in both reusable hard tag and single use label formats. If the distinction between the two technologies is fuzzy, our RFID vs EAS primer covers it; the short version is that EAS answers a presence question at the door while RFID answers an identity question everywhere else.
Why Two Radios Share One Tag Without Fighting
The reason the combination works is frequency separation. An AM element rings at 58 kHz, an RF circuit resonates at 8.2 MHz, and a UHF inlay answers near 900 MHz. Those frequencies are so far apart that each reader excites only the component built for it: the pedestal's field does not wake the inlay, and the handheld reader's signal does not ring the EAS element. The two systems can run in the same store, on the same tag, at the same time, each holding its own conversation.
What the components do share is real estate. Tag designers have to fit an EAS element, an RFID antenna, and a locking mechanism into a housing that still has to be small enough to hang on a garment, which is why dual technology hard tags tend to be slightly larger than their single purpose equivalents, and why the label versions pair a standard EAS footprint with an inlay antenna around or beside it.
The Case for One Tag Instead of Two
The argument is labor and coverage, not electronics. Tagging is applied work: someone, at the factory through a source tagging program or in the stockroom, has to attach a tag to every item. A store running EAS and RFID as separate programs either tags everything twice or accepts gaps in one of the two systems. A dual technology tag means one application step protects the door and feeds the count at once.
It also keeps the two programs aligned by construction. Any item wearing a tag is simultaneously alarmed and countable. There is no drift between what the pedestals protect and what the inventory system sees, because they are reading the same piece of plastic.
Hard Tags and Labels Behave Differently
The two formats carry the combination differently at the checkout, and the difference matters operationally.

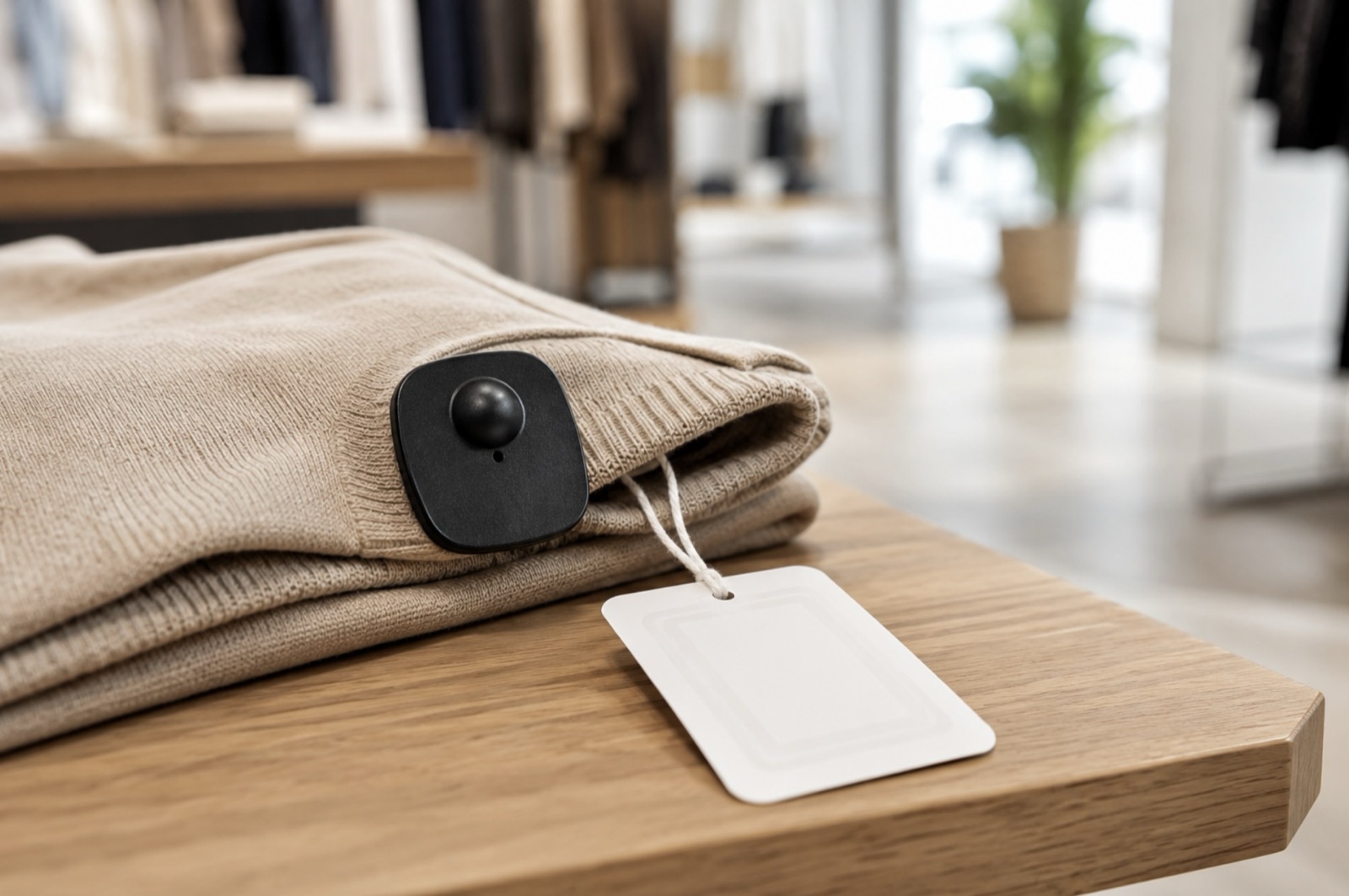

- Hard tags are detached at the counter and reused, exactly like any other hard tag. The EAS element needs no deactivation because the tag physically leaves the merchandise. The RFID inlay leaves with it, which raises the reuse wrinkle covered below.
- Labels are single use. The EAS portion is deactivated on a pad at the point of sale, and the RFID portion is simply recorded as sold in software, the same as any RFID label. Nothing needs to come off the item.
Detachers and deactivators are the same controlled equipment a store already runs for its EAS type. A dual technology program does not change the checkout hardware, only the tags.
The Reuse Wrinkle
One operational detail deserves its own section. An RFID inlay's serial number is fixed to the tag, not the merchandise. On a single use label that distinction never matters, since label and item part ways once. On a reusable hard tag it matters every time the tag is recycled: when yesterday's tag comes off a sold jacket and goes onto a new pair of jeans, the inventory software has to associate that serial number with the new item, or the count will confidently report the wrong thing.
This is a solved problem, association happens at tagging time with a reader in hand, but it is a workflow step that pure EAS reuse never required. Stores planning a reusable dual technology program should plan the association step with it.
Who Actually Benefits
A dual technology tag is only worth its premium when both radios get used. The cases sort cleanly:
- Running EAS today, adopting RFID: the strongest case. Choosing dual technology tags as the RFID program rolls out means the door never loses coverage while the count comes online, and the tagging labor is spent once.
- Running both already, on separate tags: consolidation cuts the second application step and closes coverage gaps between the two programs.
- Running EAS only, no RFID plans: the inlay is money spent on a radio nobody will ever read. Standard EAS tags remain the right buy.
- Running RFID only, no pedestals: the EAS element is dead weight without a detection field at the door; it alarms nothing. Standard RFID labels are the right buy, and whether pedestals belong at the door is a separate decision, one our analysis Can RFID Replace Your EAS Pedestals? takes up directly.
Tag platforms are increasingly built with this migration in mind. Hard tag designs like the CableTrac ship RFID ready, so a store can standardize on a housing today and light up the second radio when the inventory program arrives.
Sourcing the Two Halves
The EAS side of a program, pedestals, detachers, deactivators, and reusable security tags, is available as refurbished EAS equipment at securitytagstore.com, Retail Security Group's commerce property. The RFID side, inlay labels, handheld readers, printers, and the counting software they feed, is covered at rfidinventorytags.com, including guidance on choosing label formats. For dual technology tagging on a specific merchandise mix, ecosystem compatibility (AM or RF) is the first question to settle, and it is worth a phone call before a purchase order.
